A-Frame AllTrack Frameset [Pre-Order]

A-Frame AllTrack

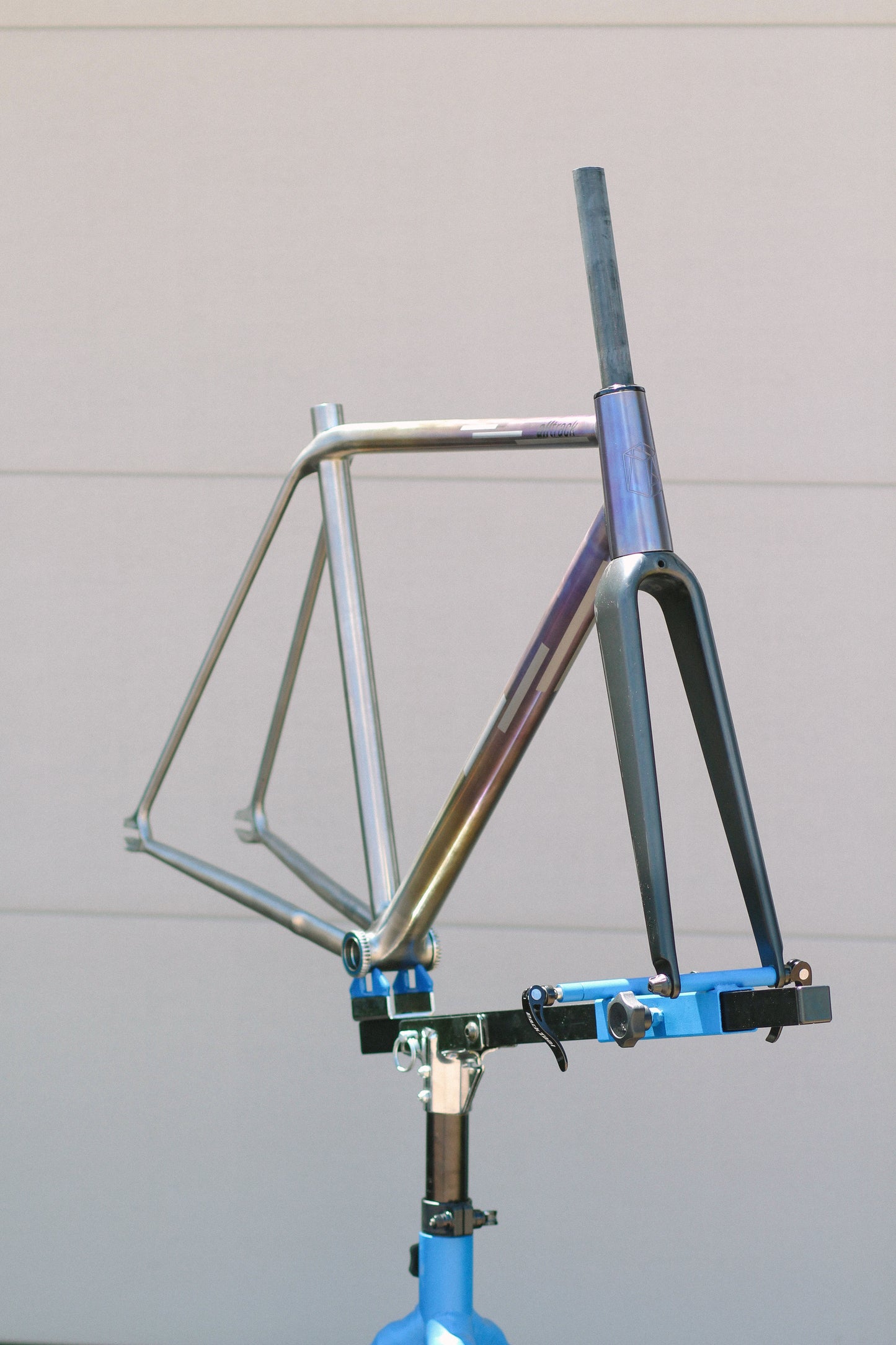

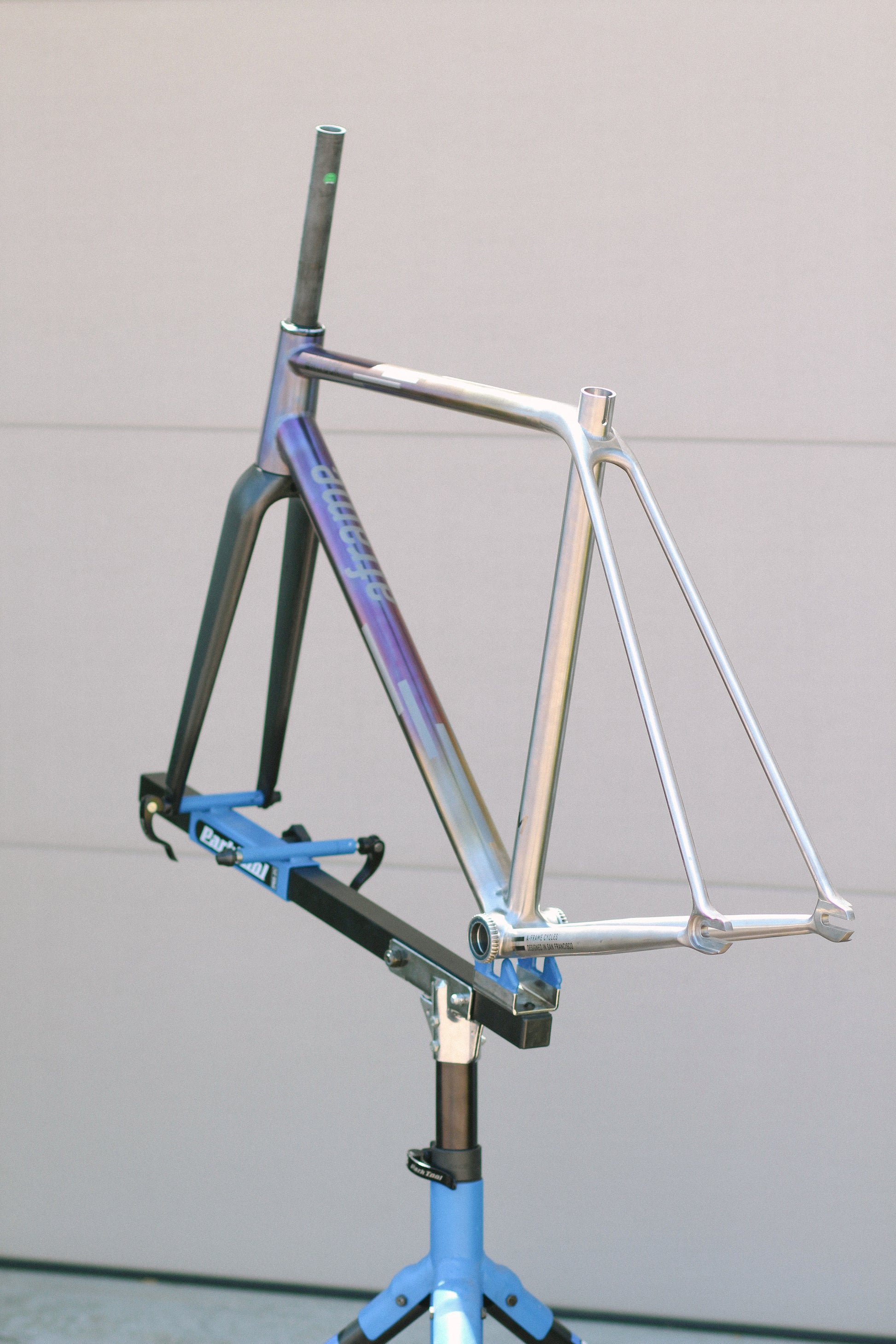

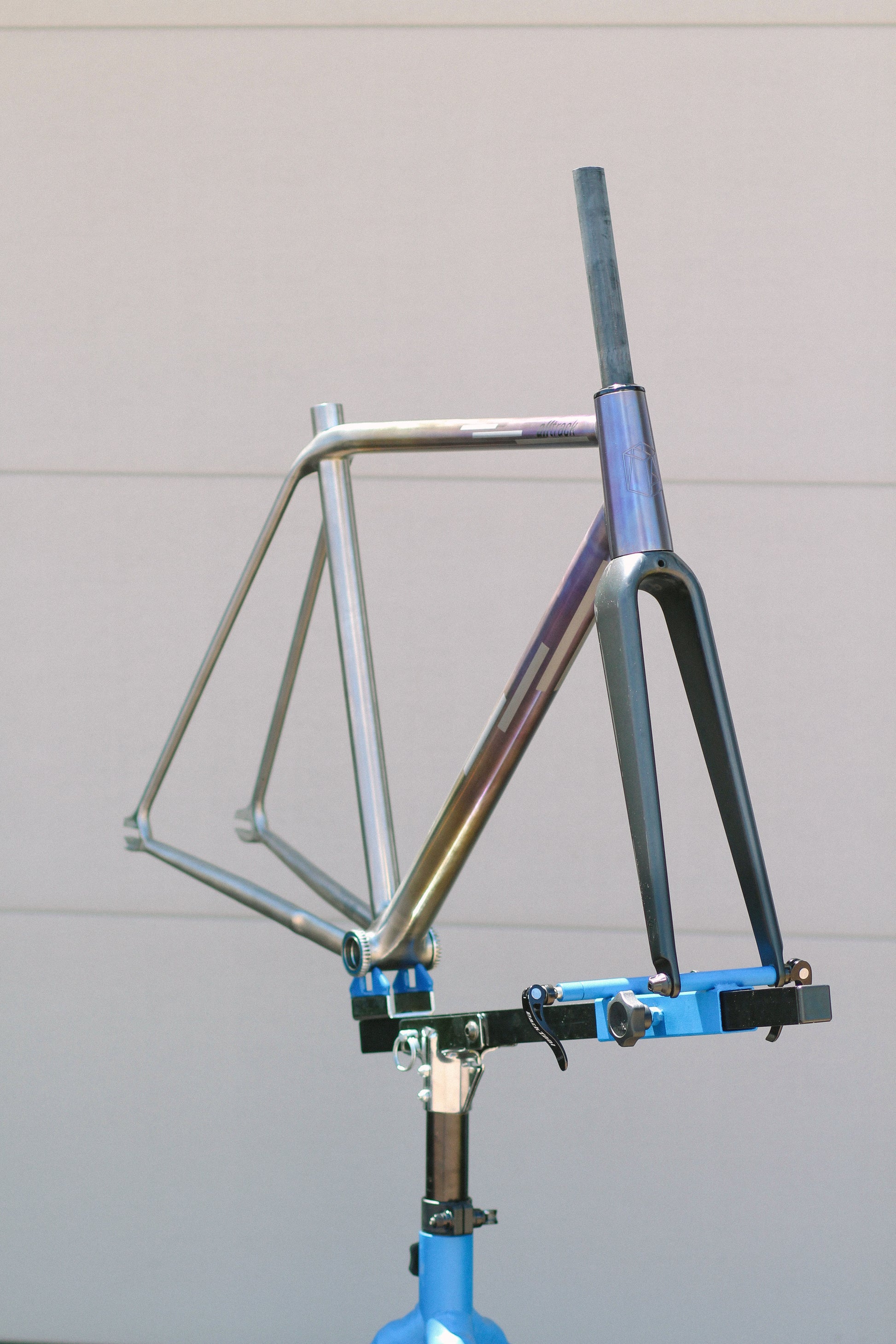

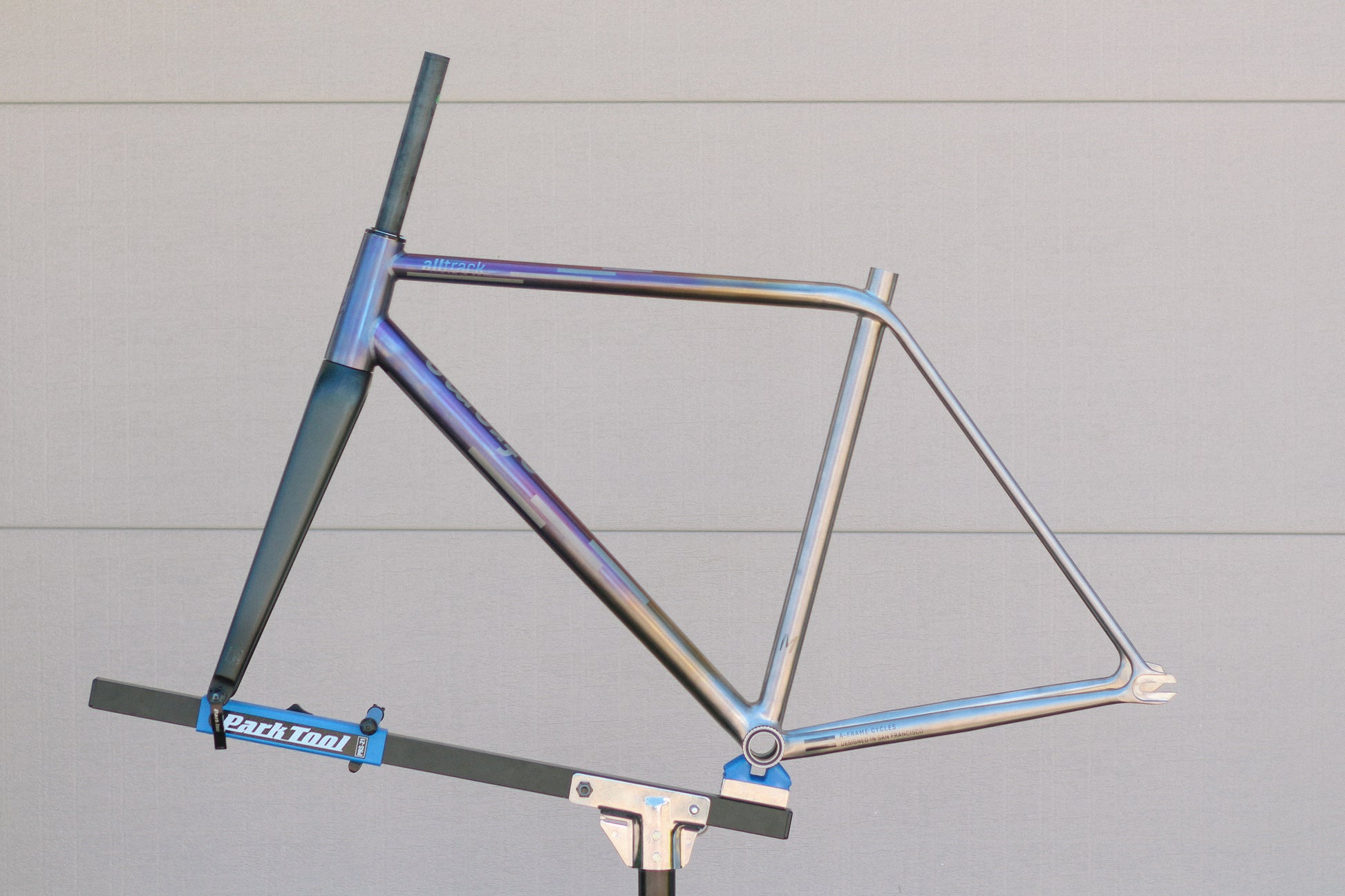

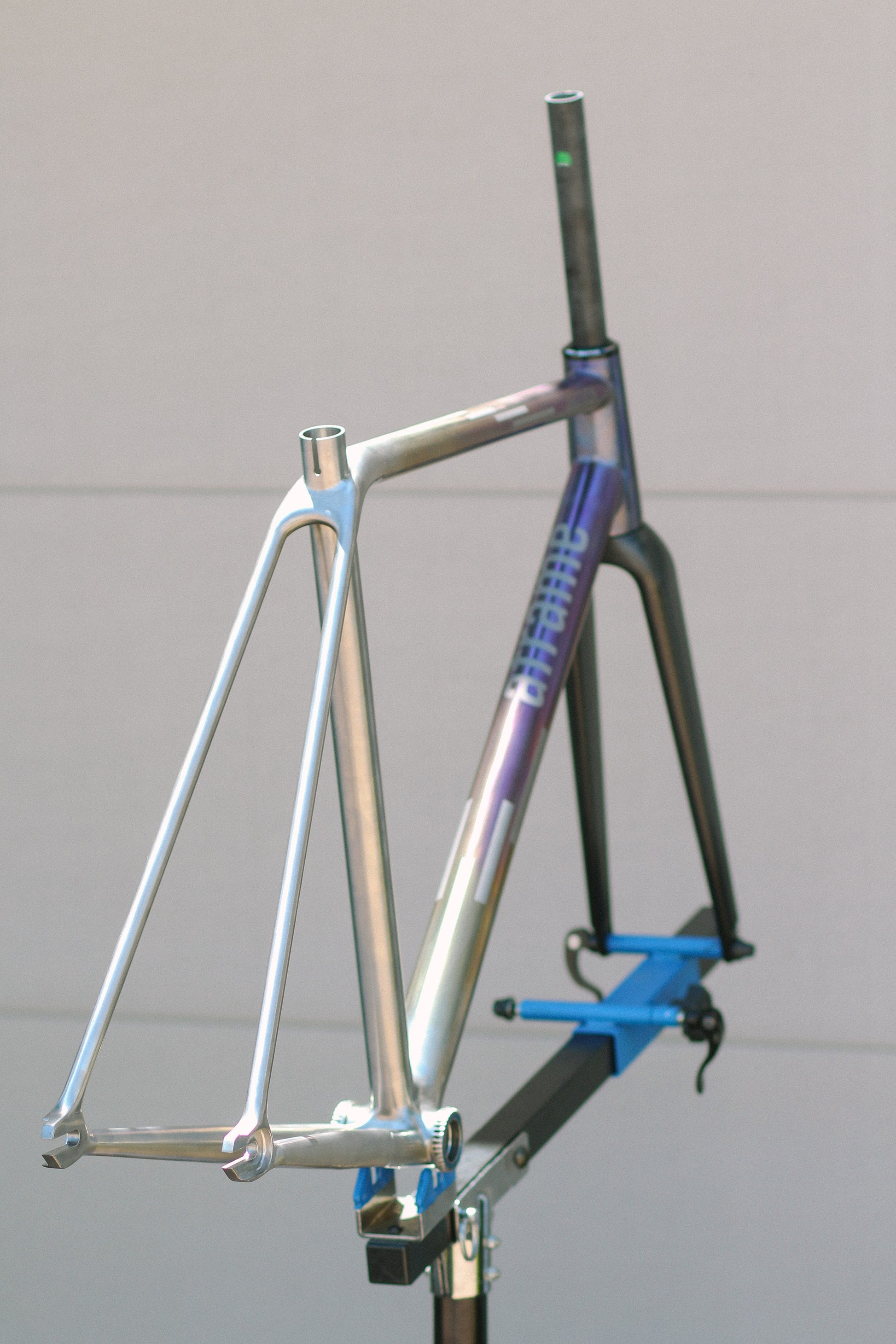

The AllTrack is our love letter to taking your track bike beyond the velodrome — from alley cats to gravel loops and everything in between. Built from aerospace-grade 3AL/2.5V titanium and finished in our signature Solar Bloom fade, this frameset blends race-ready geometry with real-world versatility.

The AllTrack uses 3D-printed titanium lugs and an oversized downtube to balance compliance with power. Paired with our proprietary carbon fork, it clears up to 40c in the front and 45c in the rear — or up to 50c with the wheel pulled back — making it the most tire-capable track geometry on the market.

With a responsive 35mm fork rake, laser-engraved details, and a premium component finish, the AllTrack is purpose-built to ride fast, ride far, and ride anywhere.

Key Features

• Aerospace-grade 3AL/2.5V titanium tubing

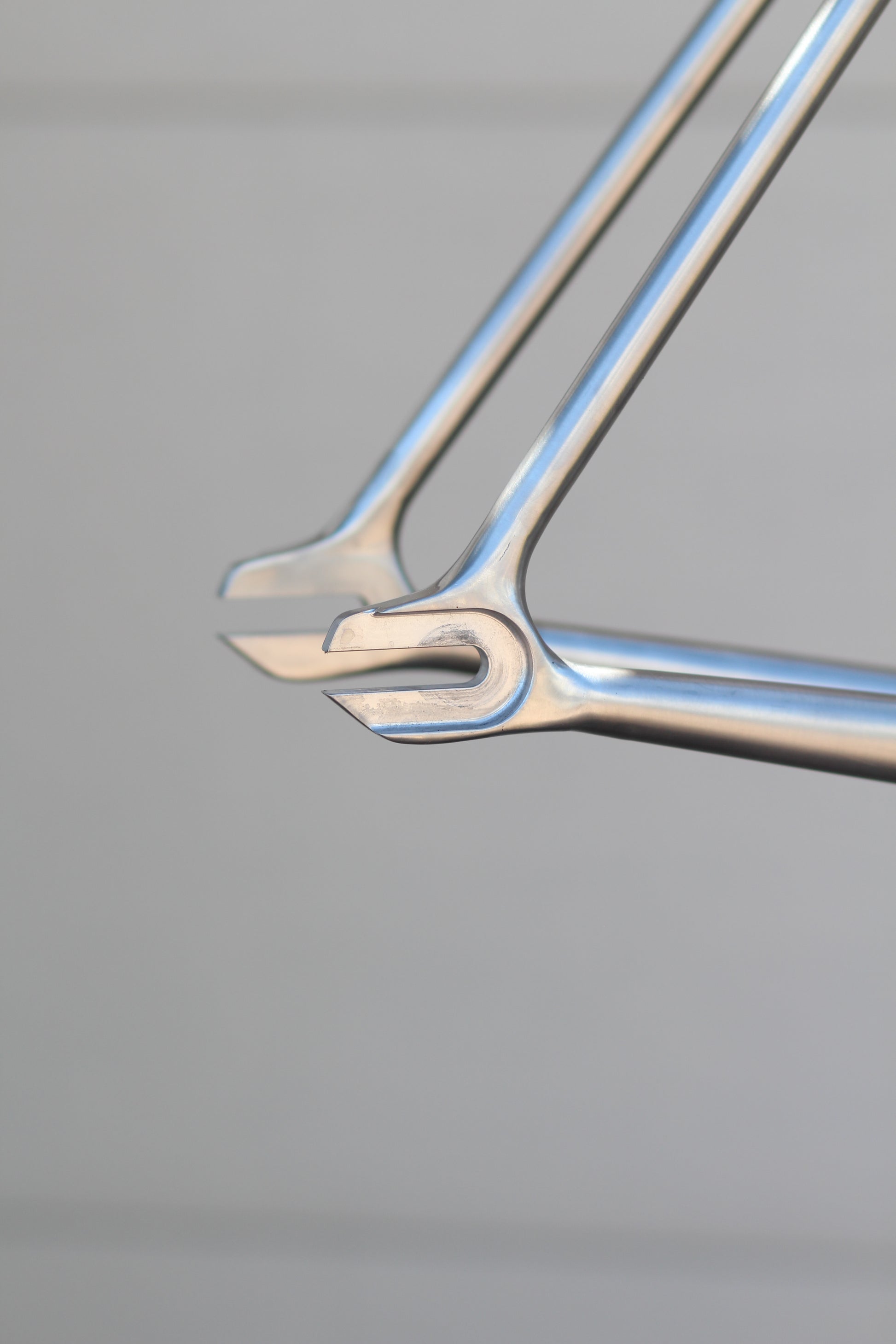

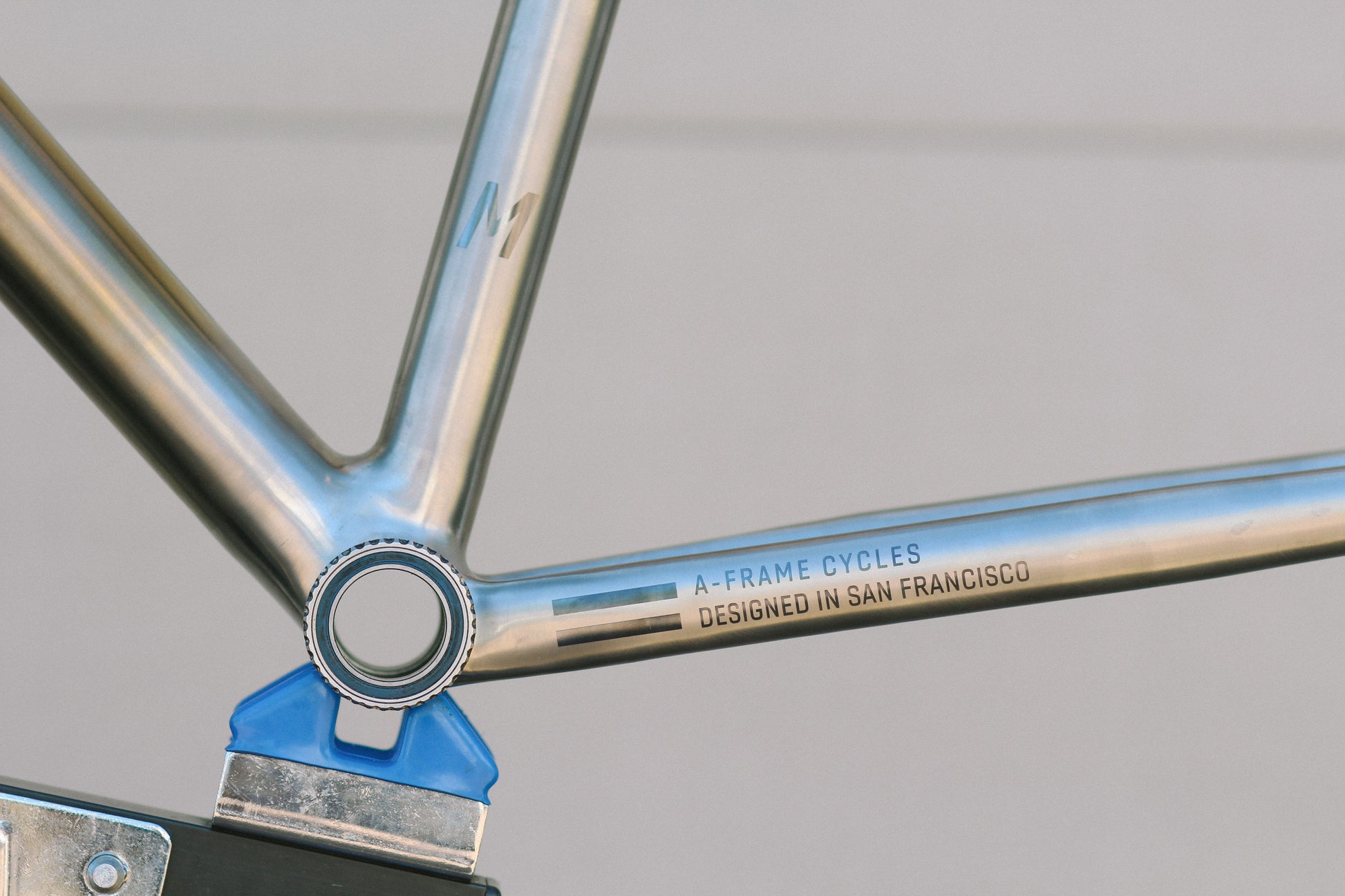

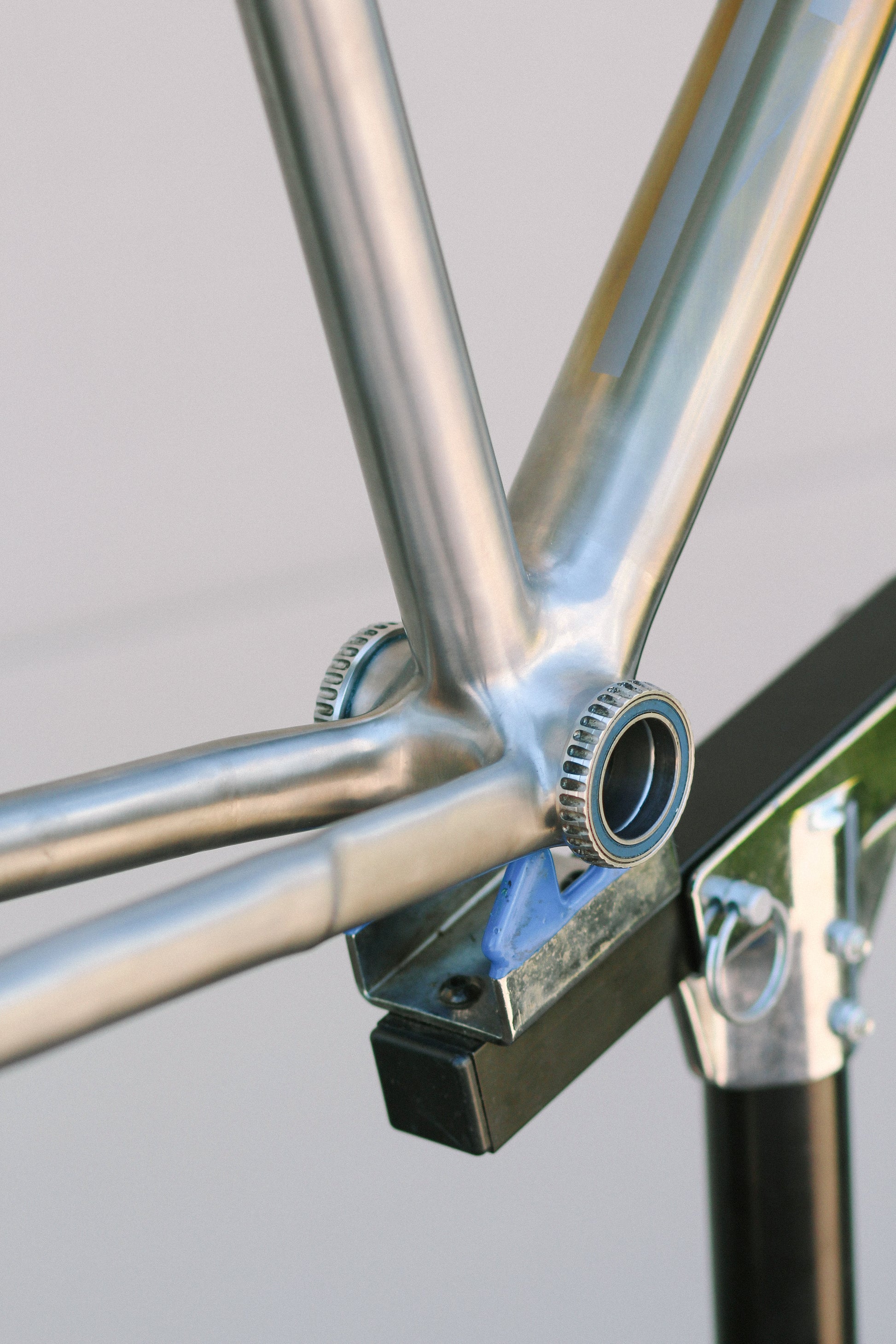

• 3D-printed titanium seat tube cluster, BB cluster, and dropouts

• Oversized downtube for efficient power transfer

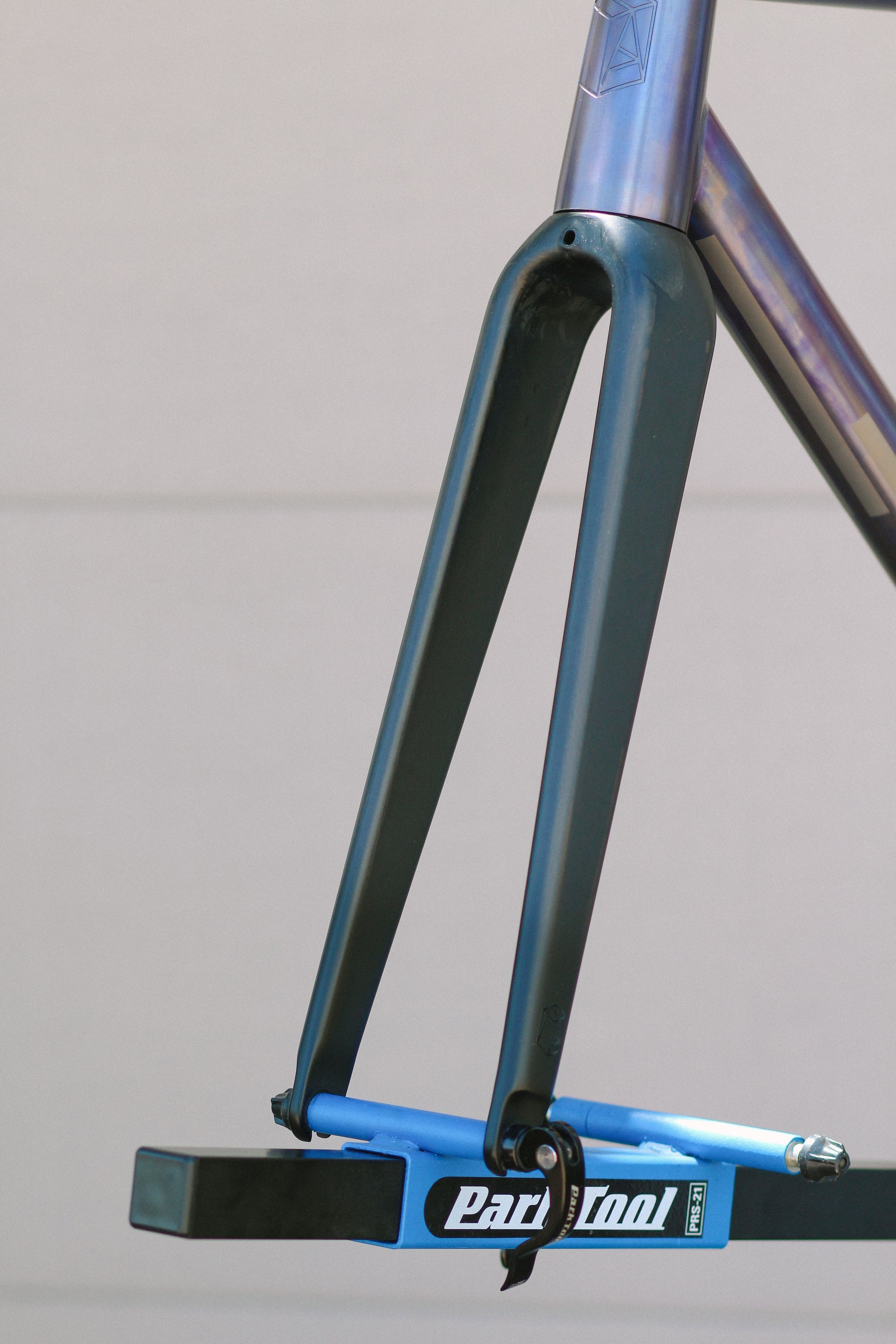

• Proprietary full carbon fork with 35mm rake

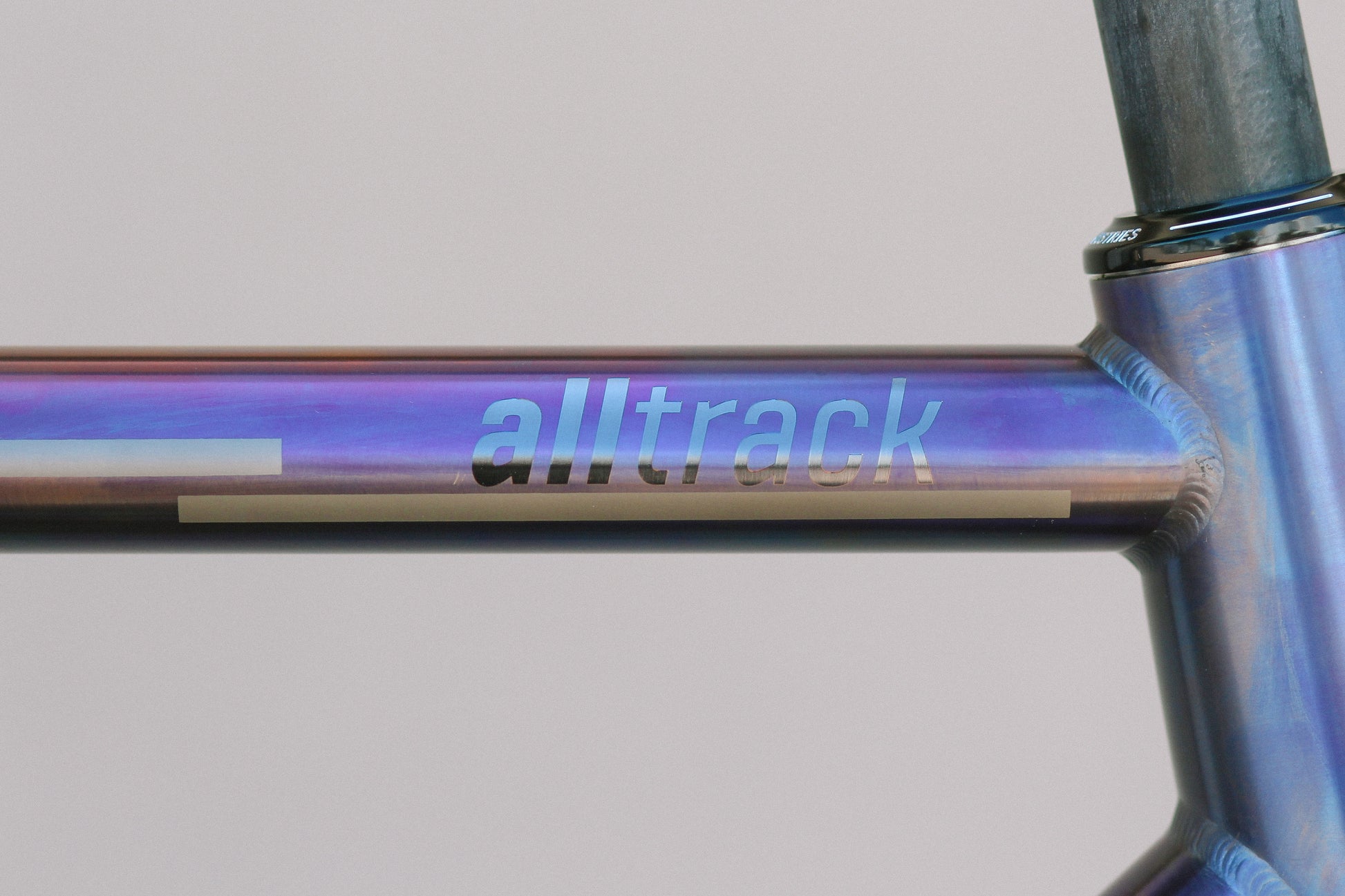

• Bead-blasted frame finish with laser-engraved decals

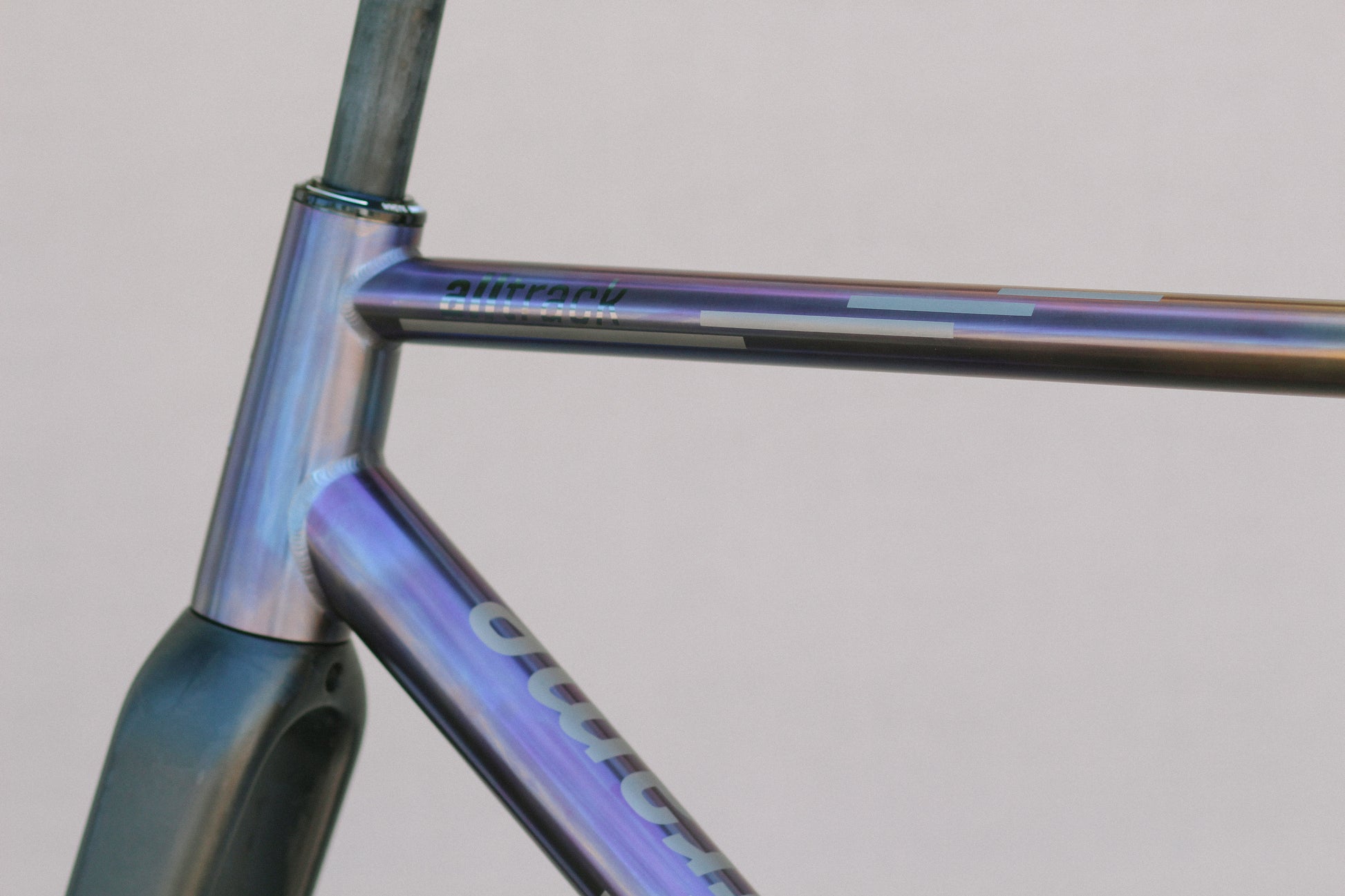

• “Solar Bloom” fade: deep blue-purple to bronze

• Designed to handle velodrome speed and off-road terrain alike

Clearances

• Front: Up to 40c with included fork

• Rear: Up to 45c (or 50c with wheel pulled back)

• Chainring: Up to 53t 144BCD

What’s Included

• Full titanium frame with double-butted tubing

• Tapered 1-1/8”–1.5” full carbon fork (35mm rake)

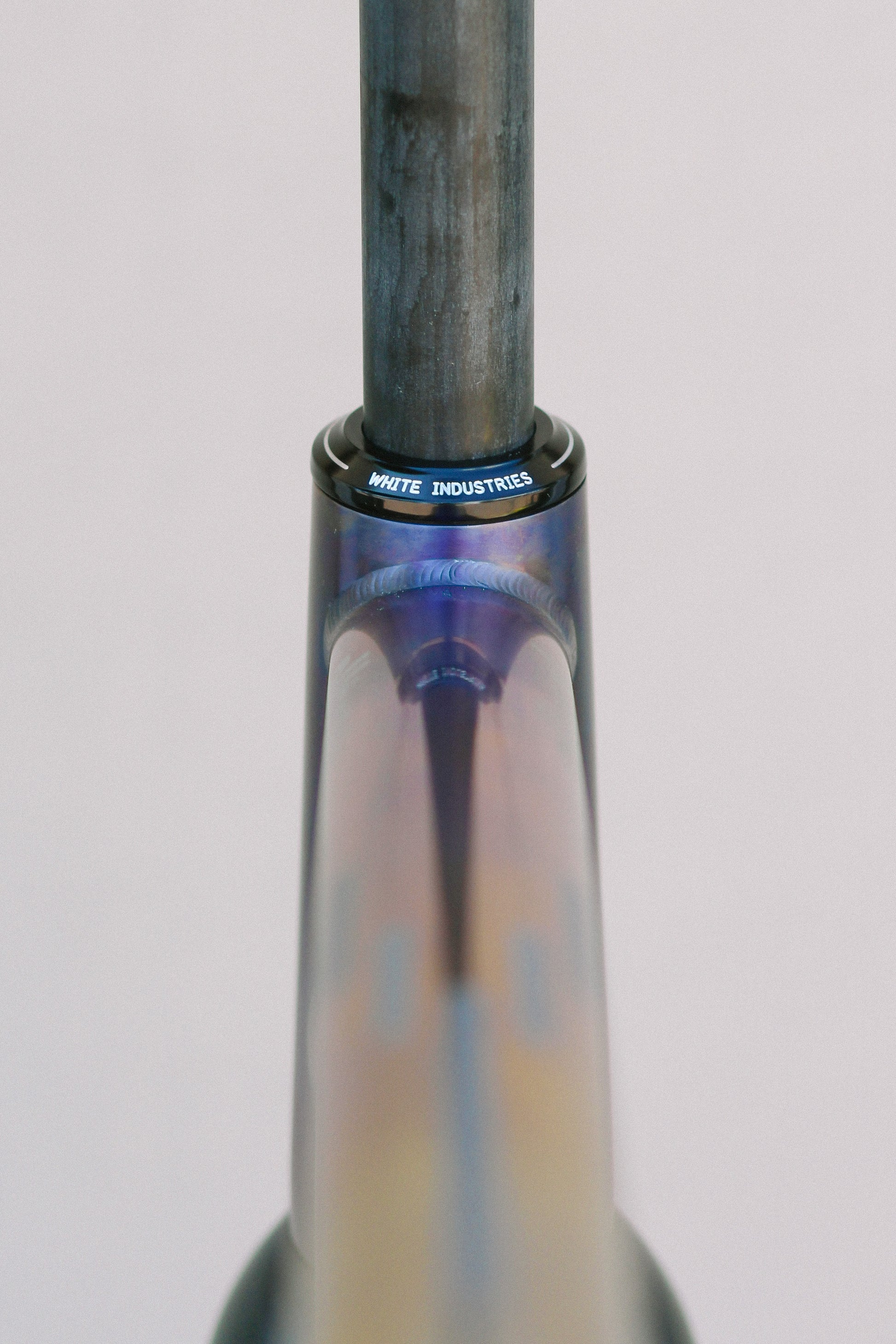

• White Industries IS42/IS52 headset

• Sandblasted titanium seat post clamp

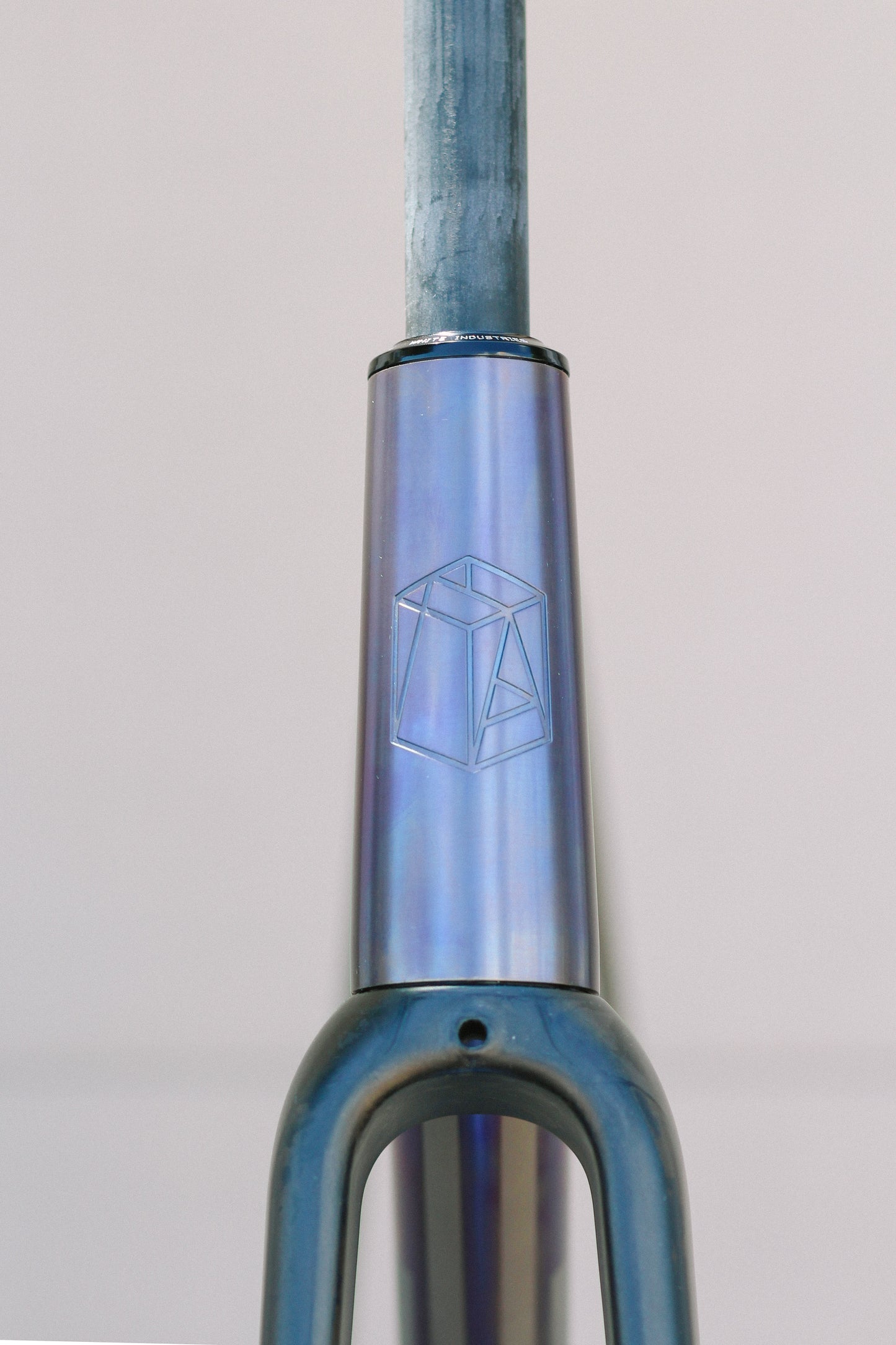

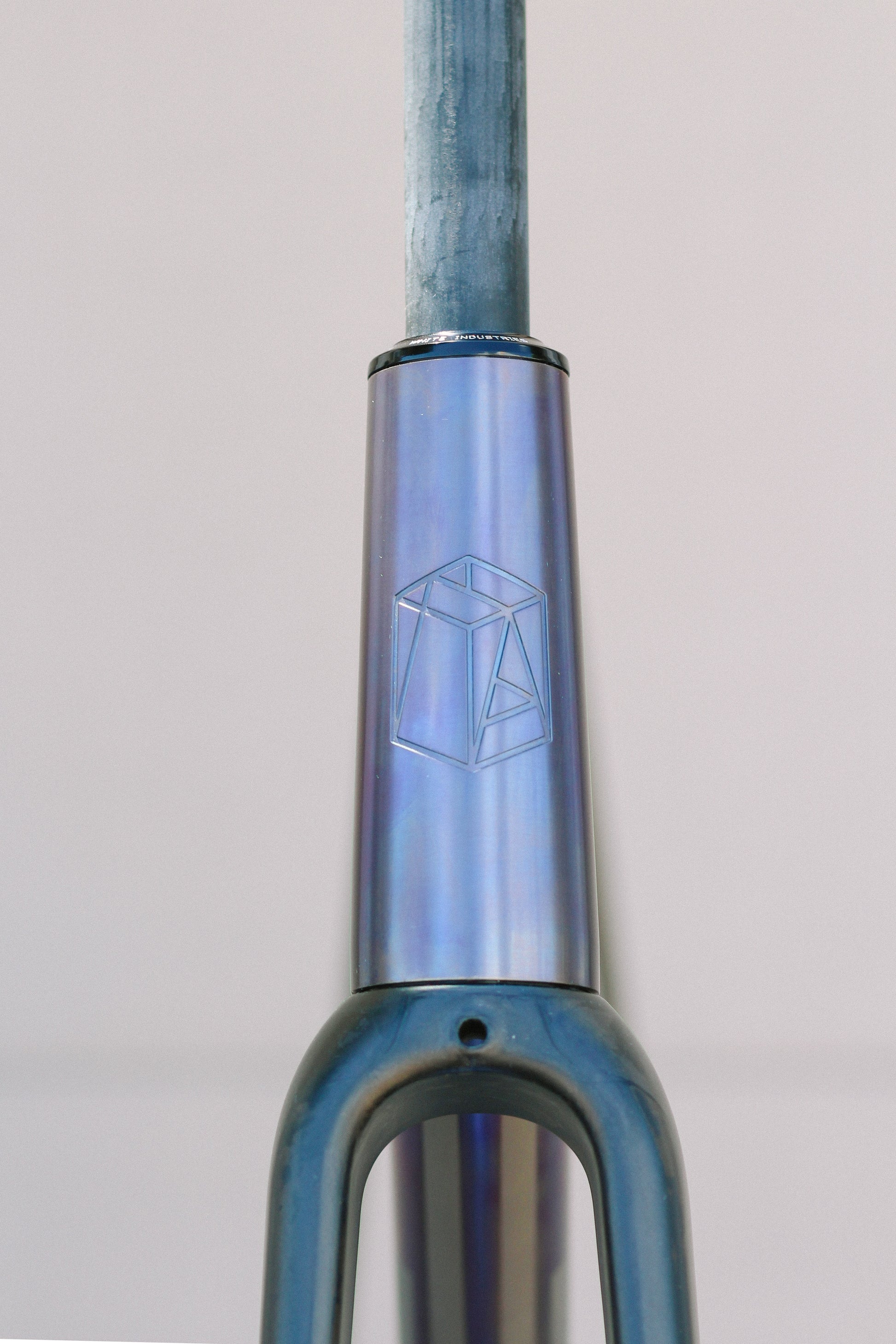

• Laser-engraved logos and frame details

Preorders are open until August 31 with an initial deposit of $1500 of $3200. Payment fulfillment ($1700 + shipping) due when frames are ready.
Current lead time: ~6 months.
